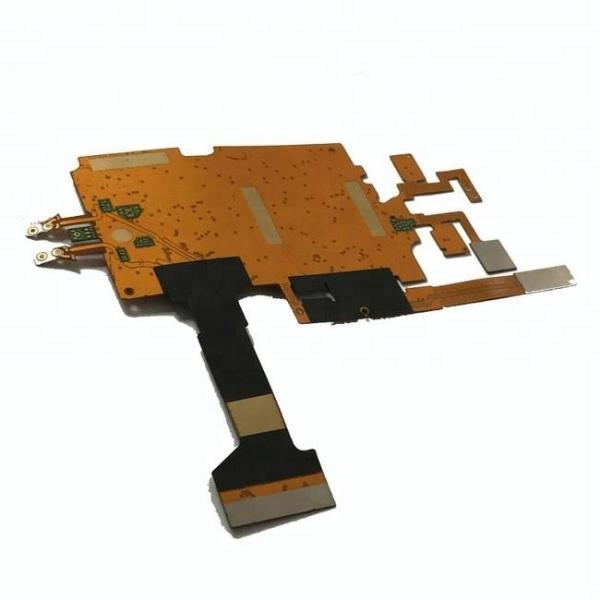

0.4mm Flex Circuit Board

Name: 04mm Flex Circuit Board
Brand: Shinelink
Price: 1 USD

Brand Name : Shinelink

Model Number : SL01016S08

Certification : UL, Rohs

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 Piece/Pieces per Day

Delivery Time : 7-12 days

Packaging Details : ESD Bag

Board Material : Polyimide (PI)

Board Thickness : 0.4 mm +/-10%

MOQ : No. MOQ

Min. line spacing : 4/4mil(0.1/0.1mm)

Min. line width : 0.075mm/0.075mm(3mil/3mil)

Min. hole size : 0.20mm,4mil

PCB Standard : IPC-6012D

Product name : PCB Assembly

Pcb assembly method : SMT

Contact Now

Gold Finger Flex Circuit Board , 1-10 Layers Flex Pcb Board 0.4mm Thickness

General description

This is a type of flexible PCB built on polyimide 76 micron substrate with 90 ohm impedance controlled on 0.15mm/0.3mm track and gap for the application of Wireless Broadband. It's standard 0.20 mm thick with yellow solder mask (coverlay) on both sides and immersion gold are on pads. FR-4 as stiffener is on the head and tail. The base material is used from Shengyi, entire board supplying 1 up flex per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 pieces are packed for shipment.

Flex PCB Specification:

Layer	1~30 Layers
Material	PI, PET, FR4, CEM1, CEM3, Hight TG, Rogers, F4B, Taconic,
Production	10000Square meter/months
Board shape	Rectangular, Round, Slots, Cutouts, Complex
Board cutting	Shear, V-Score, Tab-Routed, Counter Sunk
Board thickness	FPC:0.05~8.0mm, PCB 0.15-8.0mm
Copper weight	0.3oZ~12oZ
Solder Mask	Double-sided Green LPI, Red, White, Yellow, Blue,
Silk screen	Double-Sided or Single-Sided in White, Yellow, Black,
Min line	FPC:0.025mm/1mil ; PCB:0.075mm/3mil
Max board	FPC: 500mm600mm ; PCB: 650mm1100mm
Min drill hole	0.1mm
Min Laser Drill	0.075mm
Surface finish	Gold plating, Immersion Tin, Immersion Silver, Osp,
Plate thickness tolerance	± 10%
Min slot width	0.12",3.0mm,or 120mils
V-score depth	20-25% of board thickness
PTH Wall	>0.025mm
Hole Position	±0.076mm
Sink holes	Yes
Quality Standard	IPC-A600F/MIL-STD-105D
Design file	Gerber RS-274X, 274D, Eagle and AutoCAD'S

Files Requested For PCB Assembly Quotation

---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required

Shinelink kinds PCBA product

94V0 PCBA manufacture Scale capabilities up to
We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly
SMT process (RoHs Compliant) Capabilities up to:
1. 0201 Chip Size
2. 12 mils Integrated Circuit (IC) Pitch
3. Micro Ball Grid Array (BGA) – Pitch 16 mils
4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
5. Quad Flat Package (QFP) – Pitch 12 mils
THT(Wave soldering) process (RoHs Compliant) Capabilities up to:

1.Single side wave soldering
2.SMT & THT mixture process
0.4mm Flex Circuit Board

PCB Assembly Capabilities

Turnkey PCBA	PCB+components sourcing+assembly+package
Assembly details	SMT and Thru-hole, ISO lines
Lead Time	Prototype: 15 work days. Mass order: 20~25 work days
Testing on products	Flying Probe Test, X-ray Inspection, AOI Test, functional test
Quantity	Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files we need	PCB: Gerber files(CAM, PCB, PCBDOC)
	Components: Bill of Materials(BOM list)
	Assembly: Pick-N-Place file
PCB panel Size	Min size: 0.250.25 inches(66mm)
PCB panel Size	Max size: 2020 inches(500500mm)
PCB Solder Type	Water Soluble Solder Paste, RoHS lead free
Components details	Passive Down to 0201 size
	BGA and VFBGA
	Leadless Chip Carriers/CSP
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	BGA Repair and Reball
	Part Removal and Replacement
Component package	Cut Tape,Tube,Reels,Loose Parts
PCB assembly process	Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

PCBA Picture
0.4mm Flex Circuit Board

FAQ

Q1:Is my PCB files safe when I submit them to you for manufacturing?

We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from you, nor we'll share these files with any other 3rd parties.

Q2:What payments do you accept ?
-Wire Transfer(T/T),Western Union,Letter of Credit(L/C)
-Paypal ,Ali Pay,Credit Cart

Q3:What is your minimum order quantity?
Our MOQ is 1 PCS.

Q4:How can we guarantee you receive an good quality product?

For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.

SHIPPING

Samples: DHL/UPS/FEDEX/TNT/EMS with short delivery time 2-4 working days.

Mass production: Air/Sea transportation with low shipping cost.

Accept customer choose other suitable ship way.
